Honda Pilot: Tailgate Outer Handle/Lock Switch Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Tailgate Outer Handle/Lock Switch Removal and Installation
Removal/Installation
1. Tailgate Trim Panel - Remove
2. Tailgate Outer Handle/Lock Switch - Remove

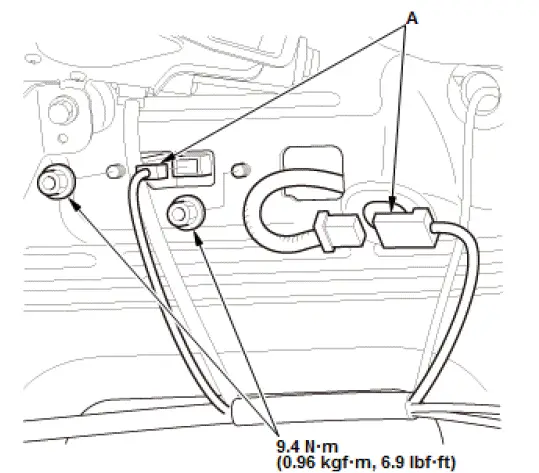

- Disconnect the connectors (A)

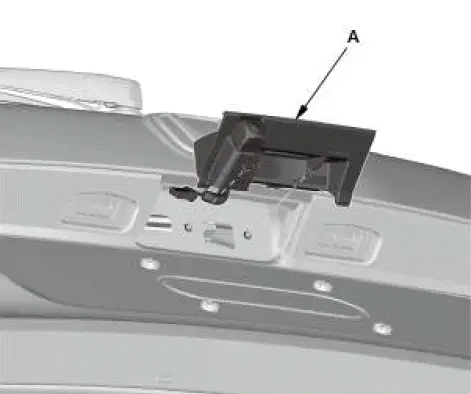

- Remove the tailgate outer handle/lock switch (A).
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Tailgate Roof Seal Removal and Installation
Removal/Installation

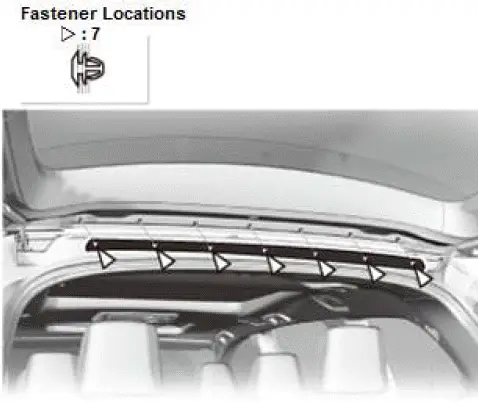

1. Tailgate Roof Seal - Remove
2. All Removed Parts - Install
- Install the parts in the reverse order of removal.
Honda Pilot 2016-2022 (YF5/YF6) Service Manual
