Honda Pilot: Timing Belt Inspection

1. Drive Belt - Remove

2. Right Front Wheel - Remove

3. Right Front Inner Fender - Remove

NOTE: Remove the appropriate portion of the front inner fender.

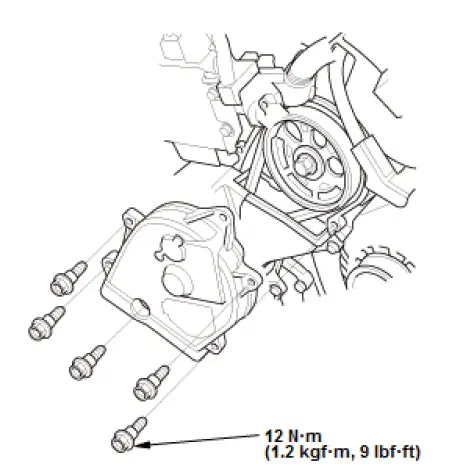

4. Front Upper Cover - Remove

5. Timing Belt - Inspect

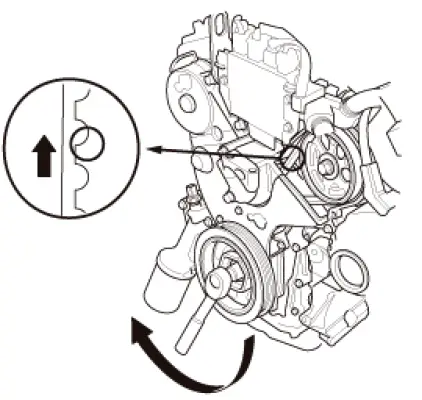

1. Inspect the timing belt for cracks and oil or coolant contamination. Replace the belt if it is cracked, or contaminated with oil or coolant. Wipe off any oil or solvent that gets on the belt pulleys.

NOTE: If there is any leakage, repair them before replacing the timing belt.

6. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
