Honda Pilot: Transfer Assembly Inspection

Inspection

Transfer Gear Backlash Measurement

1. Vehicle - Lift

2. Engine Undercover - Remove

3. Propeller Shaft - Remove

4. Transfer Assembly - Transfer Gear Backlash Check

1. Shift the transmission to N position/mode.

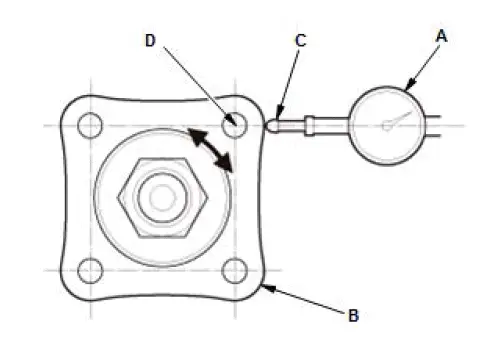

2. Set a dial indicator (A) on the transfer companion flange (B); position the dial indicator tip (C) on the direct extension of the bolt hole center (D).
3. Measure the transfer gear backlash.

Standard: 0.06－0.16 mm (0.0024－0.0063 in)

4. If the transfer gear backlash is out of the standard, replace the transfer assembly.

5. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Total Starting Torque Measurement

1. Transfer Assembly Fluid - Drain

2. Transfer Assembly - Remove

3. Transfer Assembly - Total Starting Torque Check

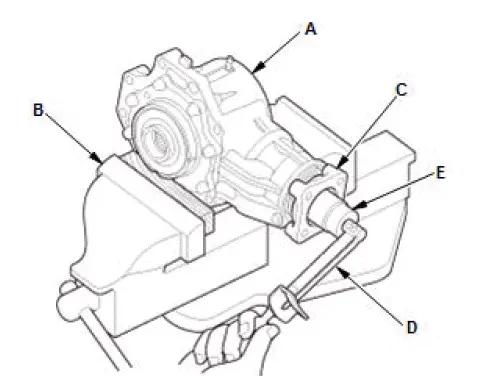

1. Secure the transfer housing (A) in a bench vise (B) with wood blocks.

   NOTE: To prevent damaging the transfer housing, always use wood blocks or equivalent materials between the transfer housing and the bench vise.

2. Rotate the companion flange several turns to seat the tapered roller bearings.
3. Measure the total starting torque at the companion flange (C) using a torque wrench (D) and a socket (E).

Standard: 2.64－4.23 N-m (26.9－43.1 kgf-cm, 23.4－ 37.4 lbf-in)

4. If the total starting torque is out of the standard, replace the transfer assembly.

4. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Fluid Leak Check

1. Transfer Assembly Fluid (Transmission Side) - Leak Check

1. Check for fluid leaks between the mating faces of the transfer assembly and the transmission.
2. If there is leak, replace the transfer cover oil seal and the O-ring.

2. Transfer Assembly Fluid (Propeller Shaft Side) - Leak Check

1. Check for fluid leaks between the transfer companion flange and the transfer oil seal.
2. If there is leak, replace the transfer oil seal and the O-ring.

   NOTE: Do not replace the oil seal with the transfer assembly on the transmission.
