Honda Pilot: Transmission Mount Removal and Installation

Removal/Installation

1. Left Front Wheel - Remove

2. Splash Shield - Remove

3. Left Front Inner Fender - Remove

NOTE: Remove the appropriate portion of the left front inner fender.

1. Lift and support the engine with a jack and a wood block under the transmission.

5. Transmission Mount - Remove

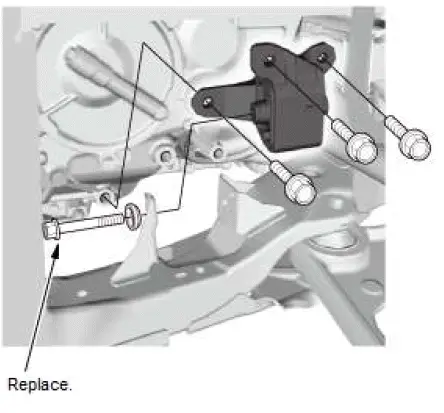

6-Speed A/T

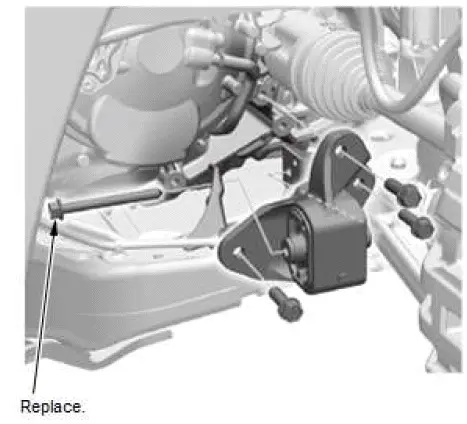

9-Speed A/T

6. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

   NOTE: Do the mounts tightening procedure before tightening all of the mounts' bolts and nuts.
