Honda Pilot: Tuner Unit Removal and Installation
Honda Pilot 2016-2022 (YF5/YF6) Service Manual / Remove, Install, Replace, Check info / Tuner Unit Removal and Installation
Removal/Installation
NOTE: If you are replacing the tuner unit, write down the AM/FM radio presets (if possible), and enter them into the new tuner unit.
1. Right Rear Side Trim Panel - Remove
2. Tuner Unit - Remove

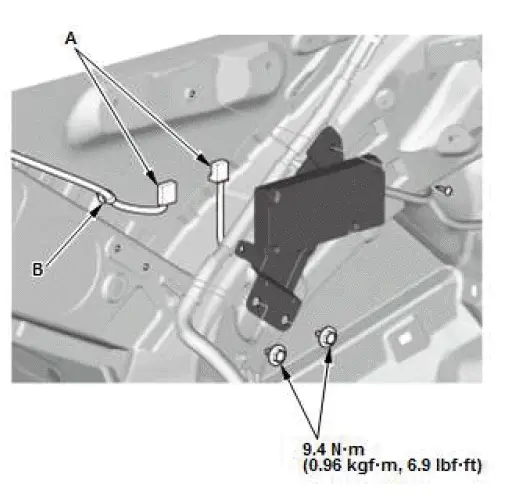

- Disconnect the connectors (A), then remove the harness clip (B).
- Remove the tuner unit.
3. All Removed Parts - Install
- Install the parts in the reverse order of removal.
