Honda Pilot: Under-Dash Fuse/Relay Box Removal and Installation

Removal/Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

1. 12 Volt Battery Terminal - Disconnect

2. Under-Dash Fuse/Relay Box - Remove

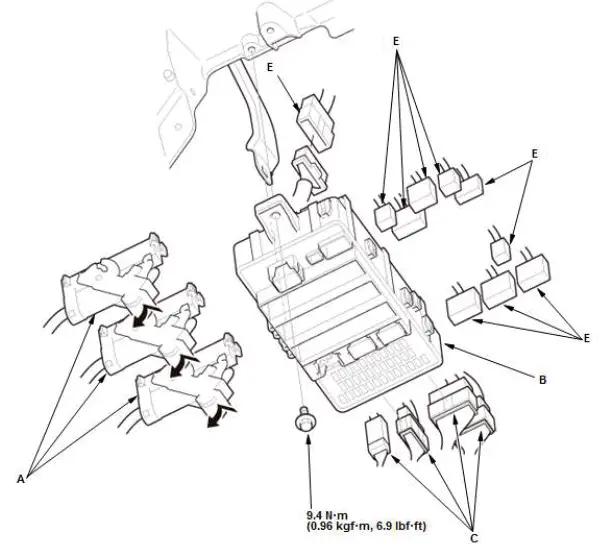

1. Disconnect the front side connectors (A).

2. Remove the under-dash fuse/relay box (B).
3. Remove the connectors (C).
4. Disconnect the connectors (E).
5. Carefully remove the relays using the relay puller tool.

   NOTE: Do not use pliers. Pliers will damage the relays, which could cause the engine to stall or not start or cause other functions to fail.

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

NOTE: If the bolt threads of the steering hanger beam are stripped, replace the bolts with one-size larger bolts (available as a service part), which are specifically designed to tighten the instrument panel to the specified torque setting.

4. Keyless Access System - Register

NOTE: If the under-dash fuse/relay box is replaced, go to step 1. If the original under-dash fuse/relay box is installed, go to step 6.

1. Connect the HDS to the data link connector (DLC).
2. Turn the vehicle to the ON mode.
3. Select ONE-PUSH START from the SYSTEM SELECTION MENU, then select REGISTRATION.
4. Select the REPLACE MICU, then select the suitable menu from the HDS indications.
5. After registration, confirm that the vehicle will start.
6. Confirm that all systems work properly.

5. MICU - Update

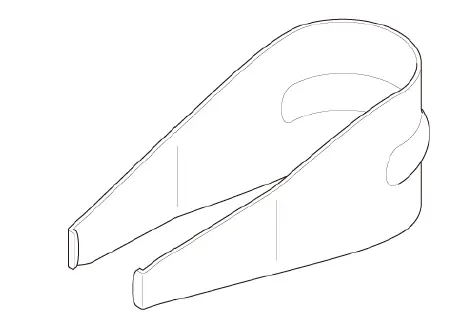

Special Tool Required

• Relay Puller 07AAC-000A2A1 or 07AAC-000A1A0
