Honda Pilot: Washer Fluid Level Switch Removal, Installation, and Test

Removal/Installation

1. Front Inner Fender - Remove

1. Remove the front inner fender as needed.

2. Washer Fluid Level Switch - Remove

1. Disconnect the connector.

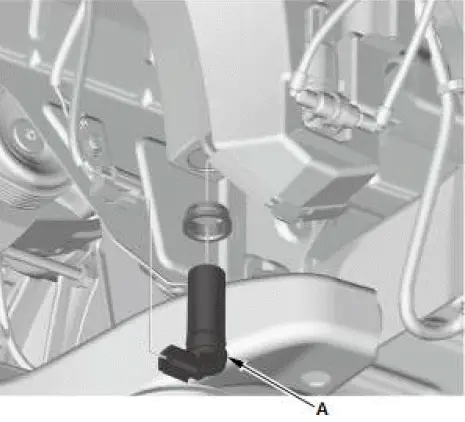

2. Remove the washer fluid level switch (A).

   NOTE: Fluid may flow out of the opening.

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

Test

1. Washer Fluid Level Switch - Test

1. Check for continuity between the terminals in each switch position according to the table.
2. If the continuity is not as specified, replace the washer fluid level switch (A).
