Honda Pilot: Washer Motor Removal and Installation

Removal/Installation

1. Front Inner Fender - Remove

1. Remove the right front inner fender as needed.

2. Windshield/Rear Window Washer Motor - Remove

1. Disconnect the connector.

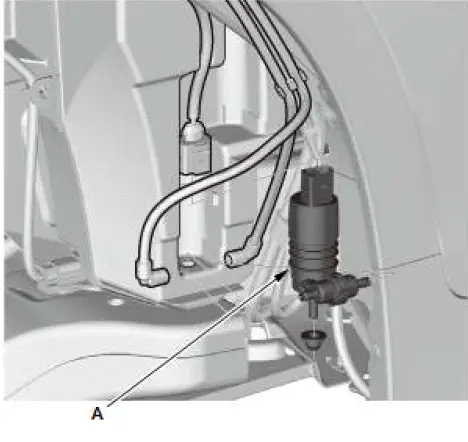

2. Remove the windshield/rear window washer motor (A).

   NOTE: Fluid may flow out of the opening.

3. All Removed Parts - Install

1. Install the parts in the reverse order of removal.
