Honda Pilot: Wiper Arm Removal and Installation

Removal/Installation

NOTE:

• Before removal and installation, turn the wiper/washer switch ON to (LO) or (HI) position, then OFF to return the motor shaft to the park position.
• Do not use the wiper/washer switch (AUTO) or (INT) position in this step.

Windshield

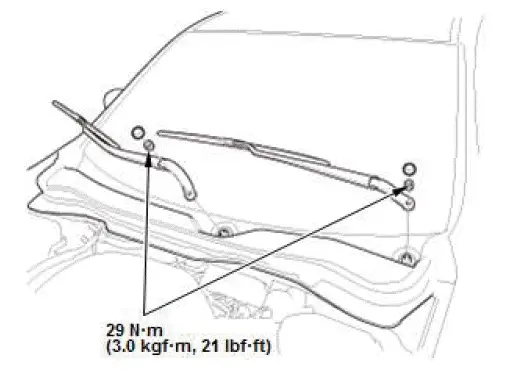

1. Windshield Wiper Arm Assembly - Remove

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

3. Windshield Wiper Arm/Nozzle - Adjust

Rear Window

1. Rear Window Wiper Arm Assembly - Remove

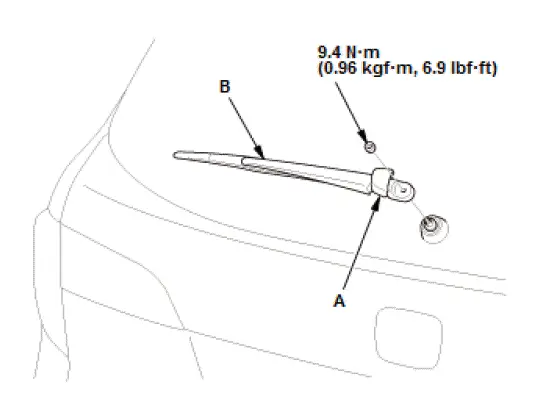

1. Open the cap (A), then remove the rear window wiper arm assembly (B).

2. All Removed Parts - Install

1. Install the parts in the reverse order of removal.

3. Rear Window Wiper Arm/Nozzle - Adjust
