Honda Pilot: Wiper Blade Removal and Installation

Removal

Windshield

1. Windshield Wiper Blade - Remove

1. Lift the wiper arm off the windshield, raising the driver's side first, then the passenger's side.

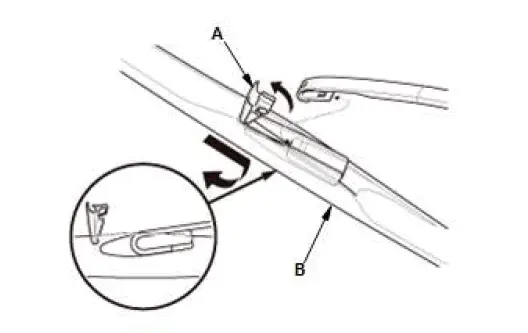

2. Pull up the tab (A).
3. Slide the windshield wiper blade assembly (B) off the wiper arm.

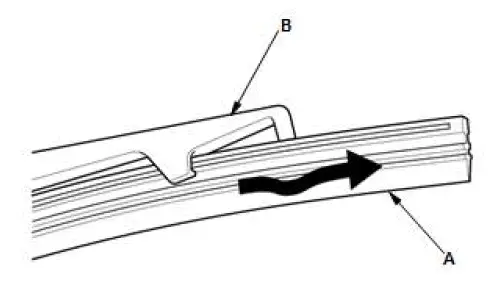

4. Slide the wiper blade (A) out of the wiper blade holder (B).

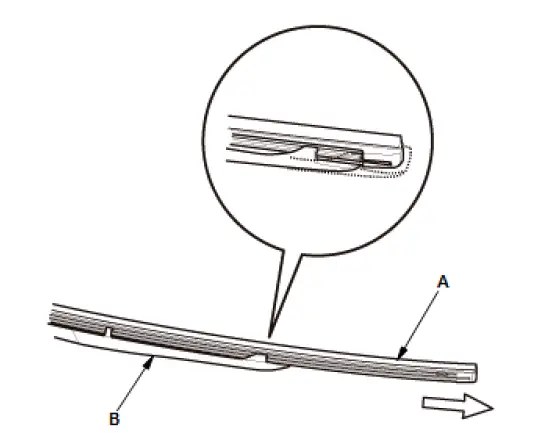

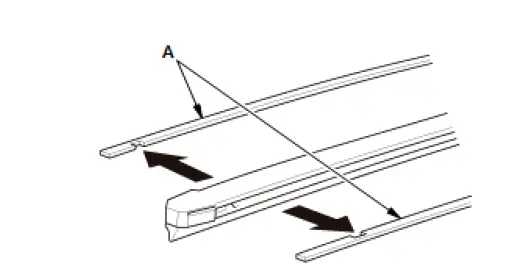

5. Remove the rails (A).

Rear Window

1. Rear Window Wiper Blade - Remove

1. Lift the wiper arm off the rear window.
2. Turn the rear window wiper blade assembly (A) and release the lock.
3. Slide out the rear window wiper blade assembly.

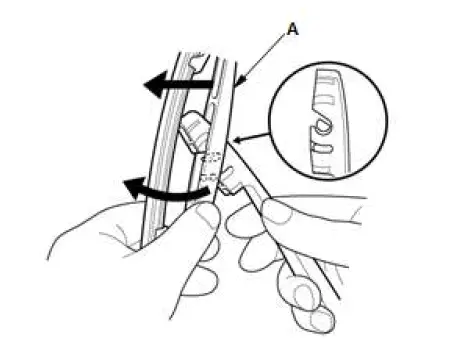

4. Remove the old rear window wiper blade (A) from the wiper blade holder (B).

Installation

Windshield

1. Windshield Wiper Blade - Install

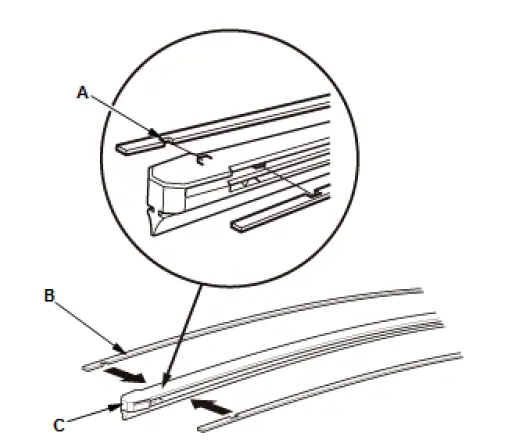

1. Align the grooves (A) in each rails (B) with the tabs in a new wiper blade (C), then install the rails to the new wiper blade.

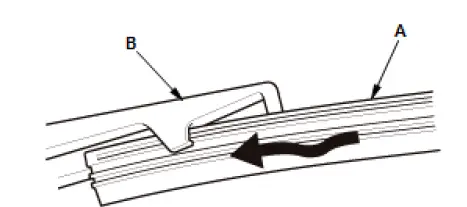

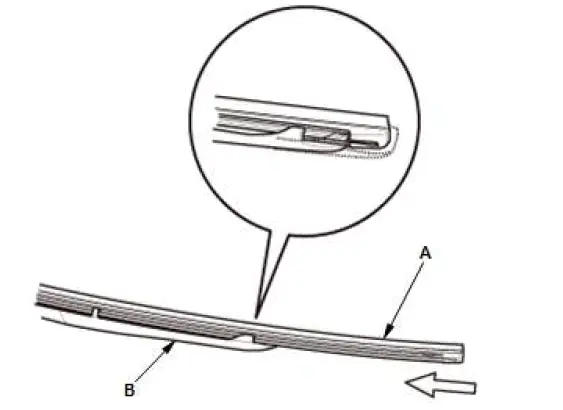

2. Install the wiper blade (A) to the wiper blade holder (B).

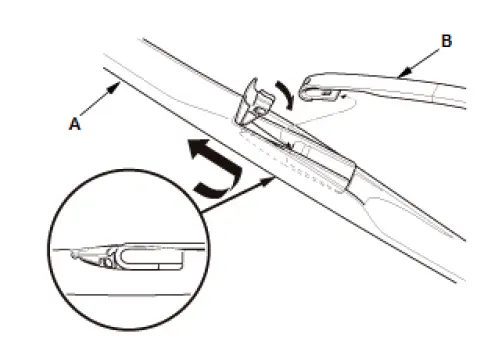

3. Install the windshield wiper blade assembly (A) on the windshield wiper arm (B).
4. Test by turning on the wipers.
5. If the blades slip, turn off the wipers and seat the windshield wiper blade assembly more firmly.

1. Rear Window Wiper Blade - Install

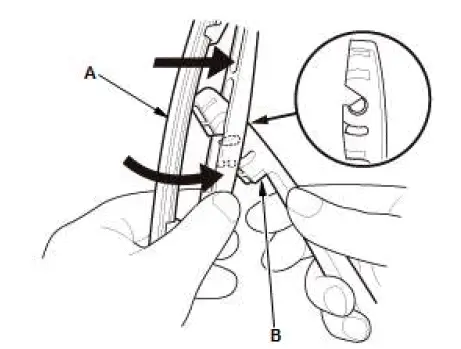

1. Install the new rear window wiper blade (A) and set the holder (B) into the groove.

2. Install the rear window wiper blade assembly (A) to the rear window wiper arm (B).
3. Test by turning on the wipers.
4. If the blade slips, turn off the wiper and seat the rear window wiper blade assembly more firmly.
